Optically Filtering Adhesive Film
Product Overview
This adhesive film absorbs specific wavelengths in the range from UV (ultraviolet) to visible light. The absorption wavelengths can be controlled according to the application, such as enhancing the color reproducibility of displays or preventing degradation through UV cut. It is suitable for a wide range of optical applications, including displays, touch panels, optical devices, and automotive equipment.
Product Features
Feature 1
Wavelength absorption characteristics

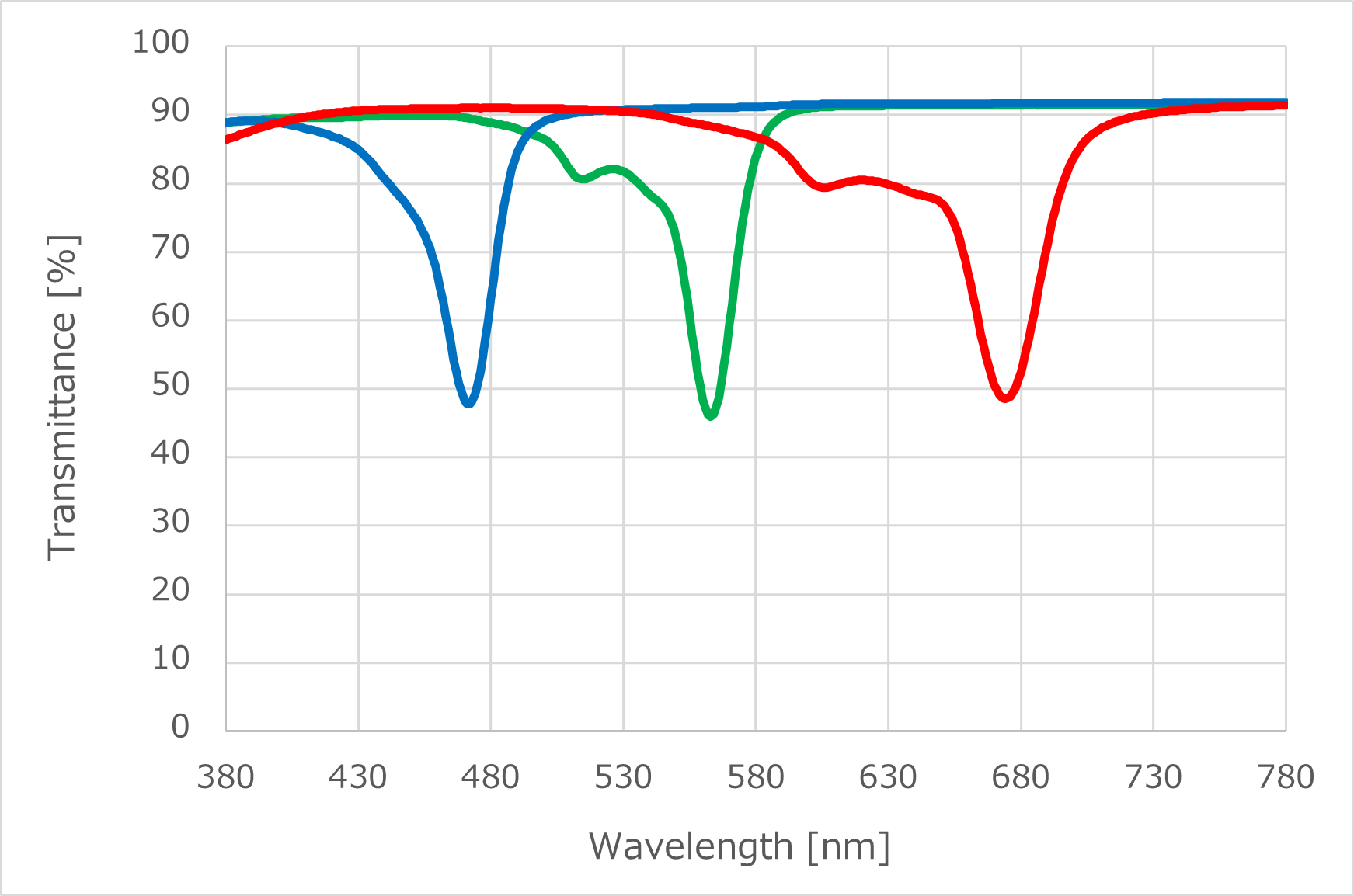

The film absorbs specific wavelengths in the UV to visible light range. Multiple absorption wavelengths can also be configured, meeting a wide variety of optical requirements.
Feature 2
Custom-ready
In addition to the absorption wavelength and cut-off rate, the adhesive formulation and thickness can also be customized.
Feature 3
High-cleanliness production
It is manufactured in a high-cleanliness environment cultivated through years of experience in producing polarizer protective films.
Specification
| Items | Unit | Test method | UV cut type | Visible light cut type | |
|---|---|---|---|---|---|
| Adhesive thickness | μm | – | 20 | 50 | |
| Adhesion to glass | N/25mm | 0.3m/min. 180℃ | 16.8 | 4.0 | |
| Haze | % | JIS K 7136 | 0.4 | 0.6 | |
| Total light transmittance | % | JIS K 7361 | 92.1 | 53.8 | |

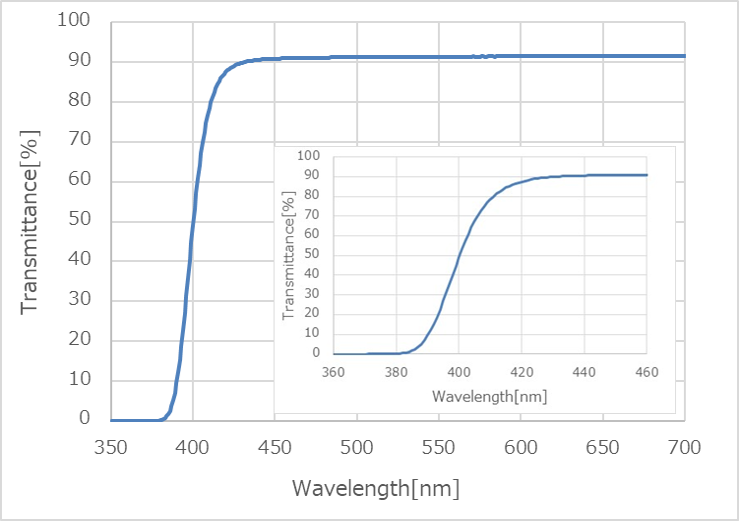

| Spectral transmittance | 380nm | % | – | 0.1 | – |
| 400nm | % | 49.1 | – | ||
| 420nm | % | 87.5 | – | ||
| 550nm | % | – | 32.9 | ||
