High Refractive Index Control Adhesive Film
Product Overview

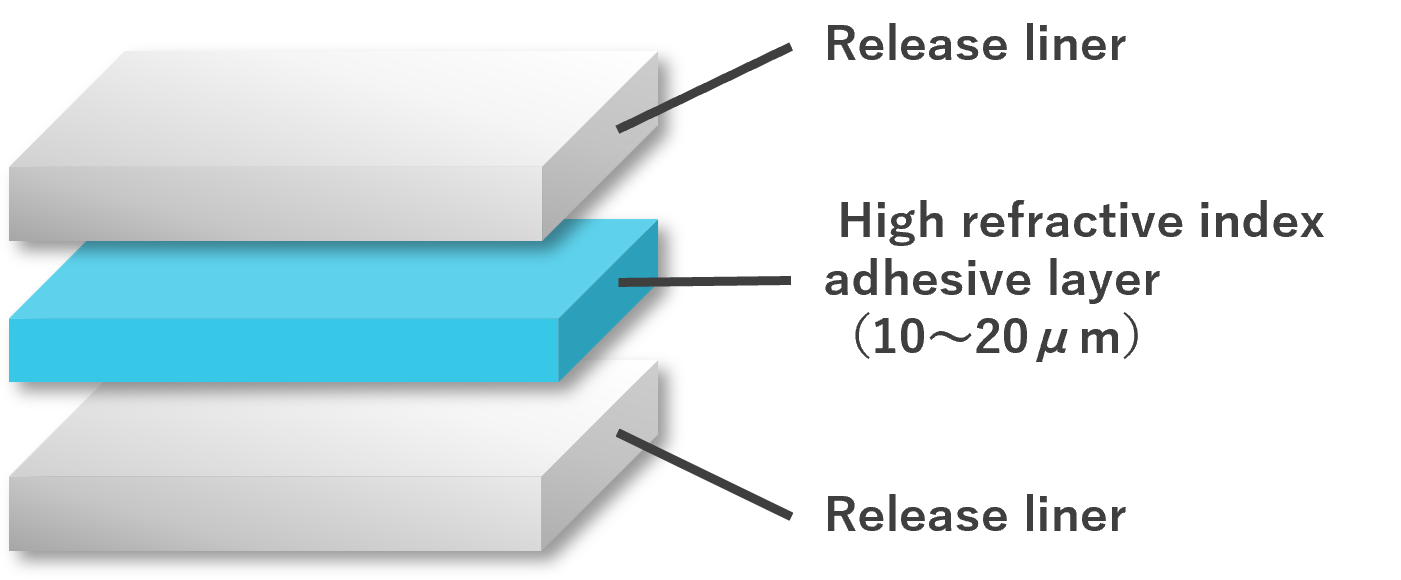

This adhesive film achieves a high refractive index while maintaining optical properties such as light transmittance and haze. By combining strong adhesion with a high refractive index, it enables the bonding of components while keeping them thin.
Product Features
Feature 1
Feature 1
The film uses an adhesive with a high refractive index (1.54) and offers excellent transparency.
Feature 2
Custom-ready
The thickness of the adhesive layer can be adjusted. Please contact us for details.
Feature 3
High-cleanliness production
It is manufactured in a high-cleanliness environment cultivated through years of experience in producing polarizer protective films.
Specifications
| Items | Unit | Test method | HRI-46S(10) | HRI-46S(20) |
|---|---|---|---|---|
| Adhesive thickness | μm | – | 10.2 | 20.7 |
| Adhesion to glass | N/25mm | 0.3m/min. 180° | 14.1 | 18.4 |
| Haze | % | JIS K 7136 | 0.3 | 0.3 |
| Total light transmittance | % | JIS K 7361 | 91.4 | 91.4 |
| Refractive index(nD) | – | – | 1.54 | |
